No other brand stands up to the success of KTM when it comes to enduro, and this is clearly evident in the biggest competition on the calendar, the ‘International Six Days Enduro’ (ISDE). From its humble beginnings, the ISDE has turned into the team world championship of the Enduro scene. This Enduro marathon demands as much from the bikes as it does from the riders, and every year, more than half of them show up on Orange. The 2021 KTM SIX DAYS models pay the ultimate tribute to the event that was originally set to take place in Italy in 2020 and had to be rescheduled for 2021. No chain is stronger than its weakest link, so no compromise can be made for those intent on crossing the finish line. KTM, once again, rises to the challenge with the latest, limited Six Days edition of extra-tough machines. Easily identified by their special Six Days design, these bikes feature an extended list of top-of-the-line components, all specially designed and refined by KTM’s own research and development department. These are the ultimate Enduro bikes for the exceptional event.
TEST RIDE BOOK NOW

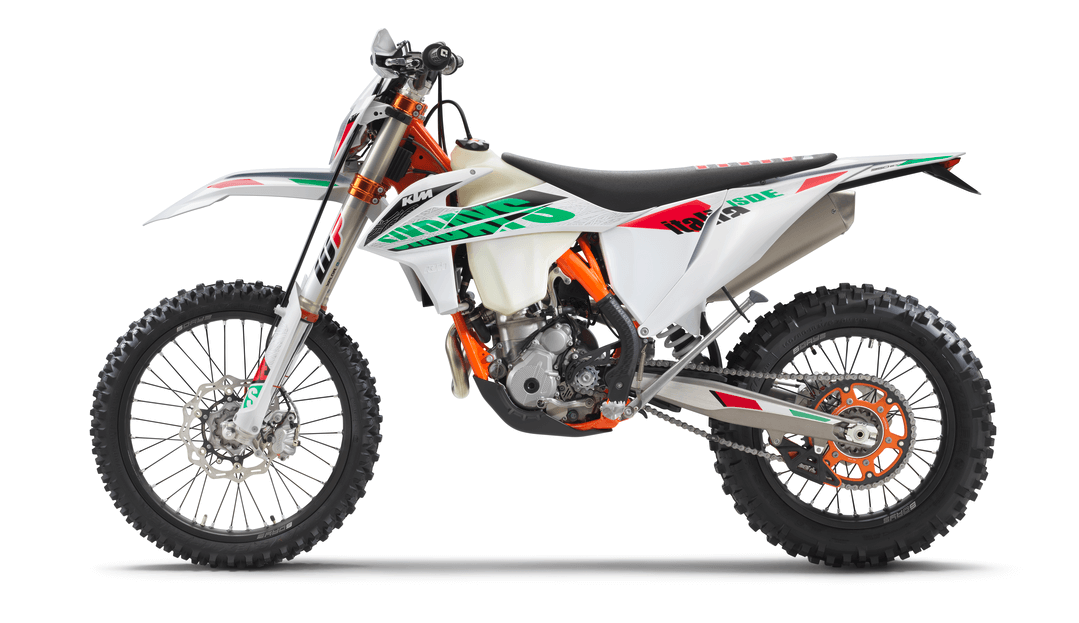

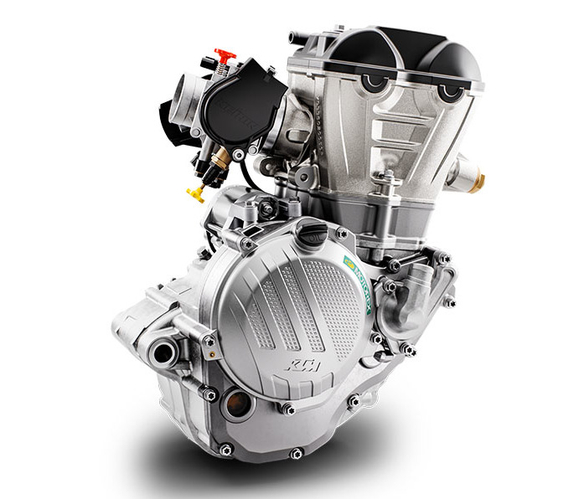

Compact dimensions with an unbelievable power output, the KTM 350 EXC-F's fuel-injected DOHC engine offers the best power-to-weight ratio on the market. Its class-leading power delivery is available throughout the entire rev range and the light weight of just 28 kg, makes it almost as light as a 250, while offering power and torque closer to a 450 cc. With Euro IV homologation, it's not only considerately green, but leaves the competition green with envy too.

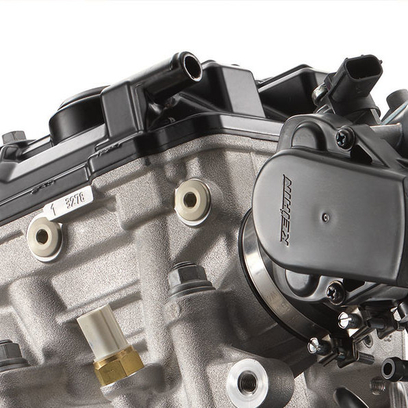

The KTM 350 EXC-F engine is fitted with a compact DOHC cylinder head for optimal mass centralization while contributing to even better handling. The head configuration, with 2 overhead camshafts controlling the gas flow through the ports, promises outstanding, enduro-specific engine characteristics. The DLC coated finger followers, as well as the lightweight valves they actuate (intake 36.3mm, exhaust 29.1mm), allow for higher engine speeds, a crucial factor in the 350's dynamic performance.

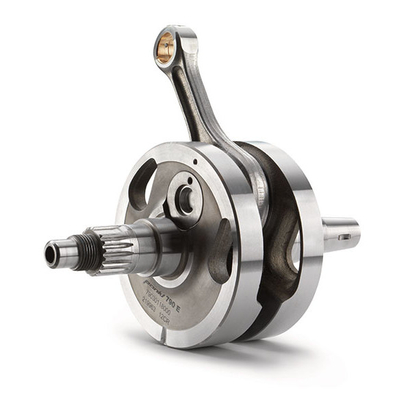

The KTM 350 EXC-F SIX DAYS' crankshaft is located in an ideal position close to the center of gravity, contributing to easier handling. It utilizes a short connecting rod, which makes for an overall compact and lightweight engine with a snappy power delivery. A plain big (bottom) end bearing with two force-fitted bearing shells runs directly on the crank pin. The engine's pressurized lubrication system provides the necessary oil feed for this bearing. This design has a direct benefit for the crankshaft with extended service intervals, which are lengthened due to the plain bearing. So just pin it, all day long.

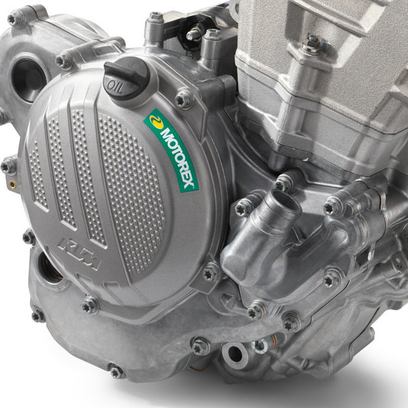

The compact engine cases are manufactured using a high pressure die-cast production process which helps with weight reduction, while retaining strength and durability. The design allows for a very centralized shaft configuration, making the engine very short and compact, while contributing to an efficient centralization of mass. The engine covers feature a smart surface structure which reduces wear caused by the rider's boots, keeping them looking as fresh as the day you bought it. Additionally, the engine guard protects the engine from damage, even in the most extreme terrain.

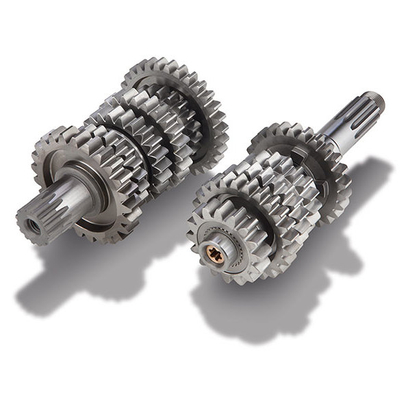

The KTM 350 EXC-F features a robust 6-speed transmission made by PANKL Racing Systems. The gears are made of a strong, forged raw material, ensuring the highest durability and reliability level. There was no need to change the gear ratios that are perfectly matched to the power characteristics of the engine. All four-stroke engines are fitted with a gear sensor, giving the option of different engine characteristics for each gear.

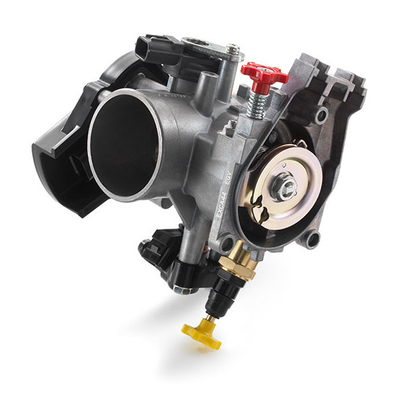

The state-of-the-art Keihin Engine Management System, with electronic fuel injection, features a 42 mm throttle body with separate systems for cold starting and idle adjustment. The throttle cable mount allows for easy access and a smooth routing of the cables. The ECU features selectable engine maps which are optimized to the exhaust, airbox and engine configuration, regulating the unique traction control and are activated by the handlebar map-select switch. It also provides different maps for each gear, according to the information received from the gear sensor, ensuring maximum power as you shift through the gears.
Inside the short 88 mm bore cylinder, is an extremely lightweight, forged bridged box-type piston made by CP. Despite its incredibly low weight, it has an extra rigid structure for enhanced durability. Thanks to its lightweight construction, the oscillating masses are low, giving the engine extremely lively characteristics. The compression ratio of 13.5:1 delivers an exceptional engine performance and reduces the risk of engine knocking.

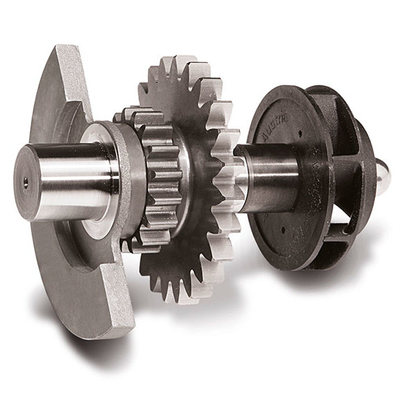

The multifunctional side-mounted counter balance shaft masterfully balances all the oscillating forces, while also driving the water pump. It effectively keeps engine vibrations to a minimum, resulting in the smoothest ride even at the highest engine speeds.

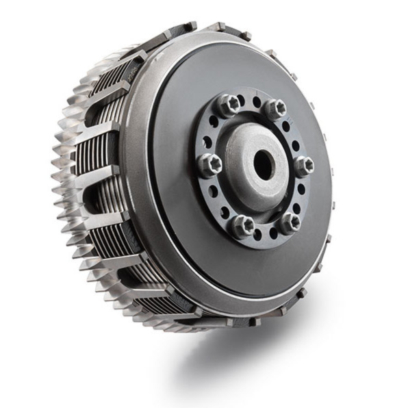

The KTM 350 EXC-F is fitted with the extremely durable, KTM-developed DS clutch (diaphragm steel), with a wear-free steel basket and heat resistant clutch plates. It uses a diaphragm spring instead of the usual coil springs, which results in considerably easier clutch action. Additionally, the Brembo hydraulic system provides easy and precise clutch modulation throughout the entire operating temperature range.

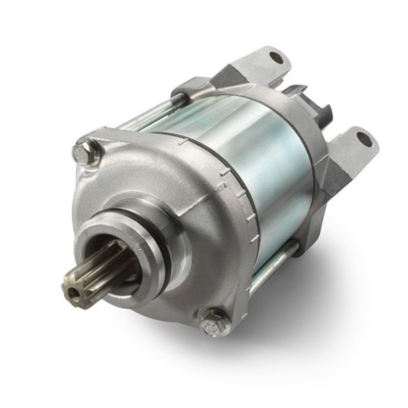

The standard electric starter on the KTM 350 EXC-F SIX DAYS uses a proven starter drive and a strong starter motor made by Mitsuba. As demonstrated time and time again, it provides quick and reliable starting, saving you precious time and energy when you need it most.

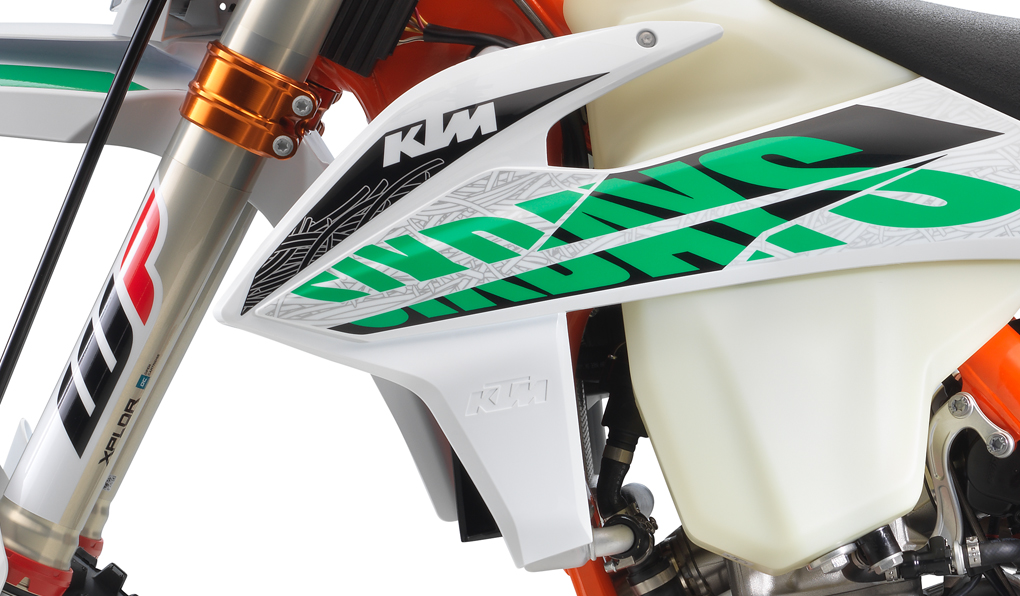

Maintaining the optimal engine temperature is crucial to ensuring consistent horsepower throughout the ride. The KTM 350 EXC-F SIX DAYS features radiators which are mounted close to the center of gravity and match the design of the shrouds perfectly, in order to achieve perfect ergonomics. By using CFD technology (Computational Fluid Dynamics) and a smart coolant circuit routing, the innovative system ensures optimum engine temperature for the highest performance, in all conditions. Above all, the delta distributor, integrated into the frame triangle, features a large center tube, making the coolant flow from the cylinder head to the radiators highly efficient. The radiators have special protectors that protect from flying rocks and debris while also acting as a brace to disperse energy around the radiators in the event of an impact.
When it comes to power delivery and performance, the exhaust plays a key role and packs a punch that is hard to beat. All 4-stroke EXC models feature two-piece header pipes which can be disassembled easily and allow easy access to the shock. The aluminum muffler sleeve has a short and compact profile, bringing the weight closer to the center of gravity for better mass centralization. The silencers on the SIX DAYS models are distinguished by the new SIX DAYS logo.

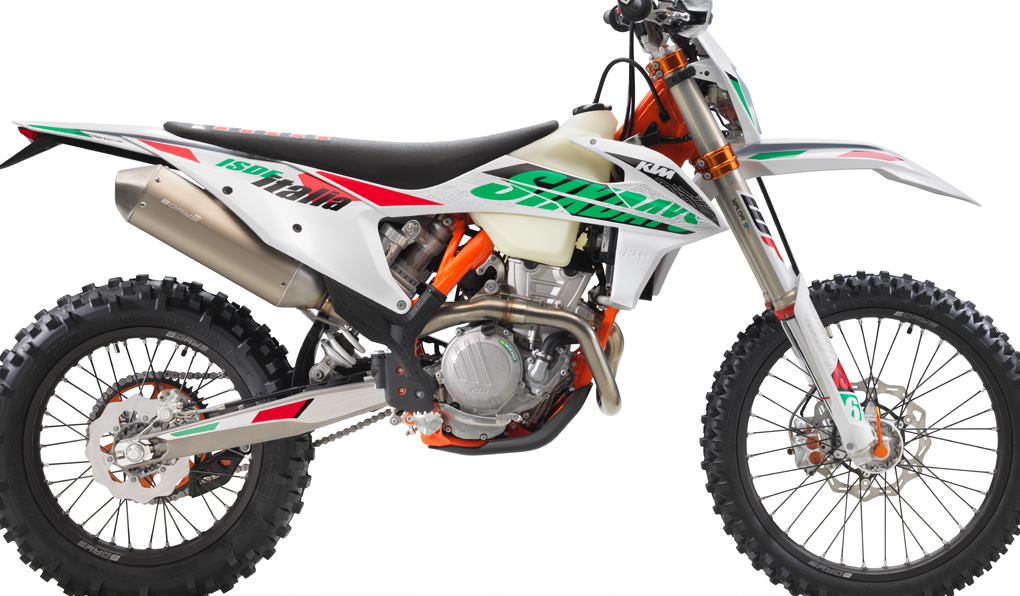

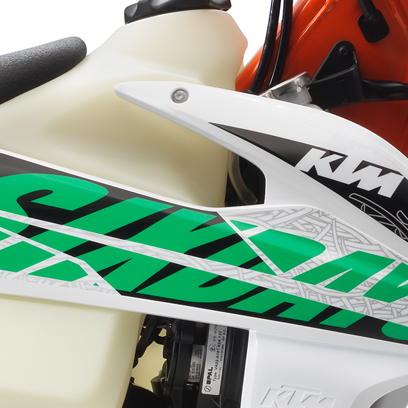

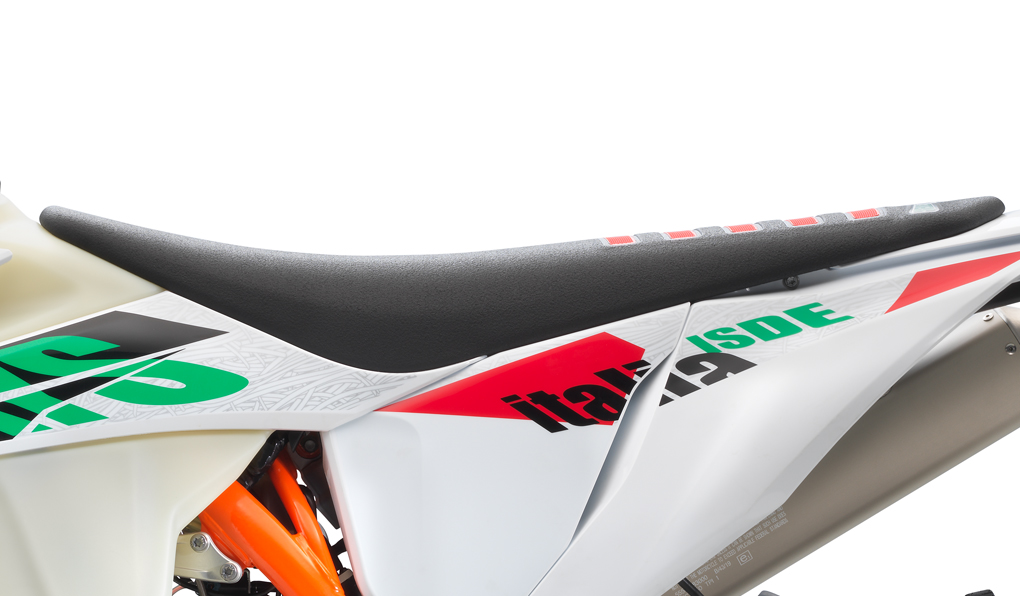

SIX DAYS seat for improved long-distance comfort, Exclusive SIX DAYS graphics with a striking design, Handlebar map select switch, Handlebar with SIX DAYS logo, SIX DAYS silencer (anodized and with SIX DAYS logo), Machined orange anodized triple clamps for extremely precise fork clamping and optimum fork function, Radiator fan for all 4-stroke models to optimize temperature management in extreme conditions, Floating front brake disc for consistent braking performance in extreme conditions, Solid rear brake disc (no slots/holes) for improved heat resistance and reduced brake pad wear, Supersprox Stealth 2-component rear sprocket with an aluminum inner ring and steel outer ring for maximum durability, Front axle puller for simple front wheel removal, Orange frame, Engine guard for effective engine protection, Orange chain guide.
Durable in-mold graphics convey the READY TO RACE character of the KTM EXC-F model line.
All EXC models feature high-tech, lightweight chromoly steel frames. This includes hydro-formed elements produced by state-of-the-art robot welding. With its race-proven geometries and optimal stiffness, the frame provides great feedback for the rider, playful handling and remarkable stability. The laterally attached engine head stays (the connection between cylinder, head and frame) are now made of aluminum, reducing vibration and further contributing to precise cornering. The bikes also feature lateral frame guards with a structured surface, improving grip, while also serving as a heat protector against the muffler on the right side. The subframe is made of extra-light and stable aluminum profiles, weighing less than 900 gr, providing great rear fender stability.

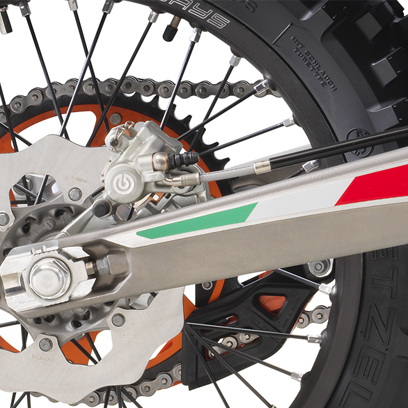

The KTM 350 EXC-F SIX DAYS' one-piece aluminum swingarm is manufactured using a gravity die-cast production process, offering exceptional strength at the lowest possible weight. The single-component casting process offers low weight, perfect flex behavior and also allows for a large number of geometry solutions.

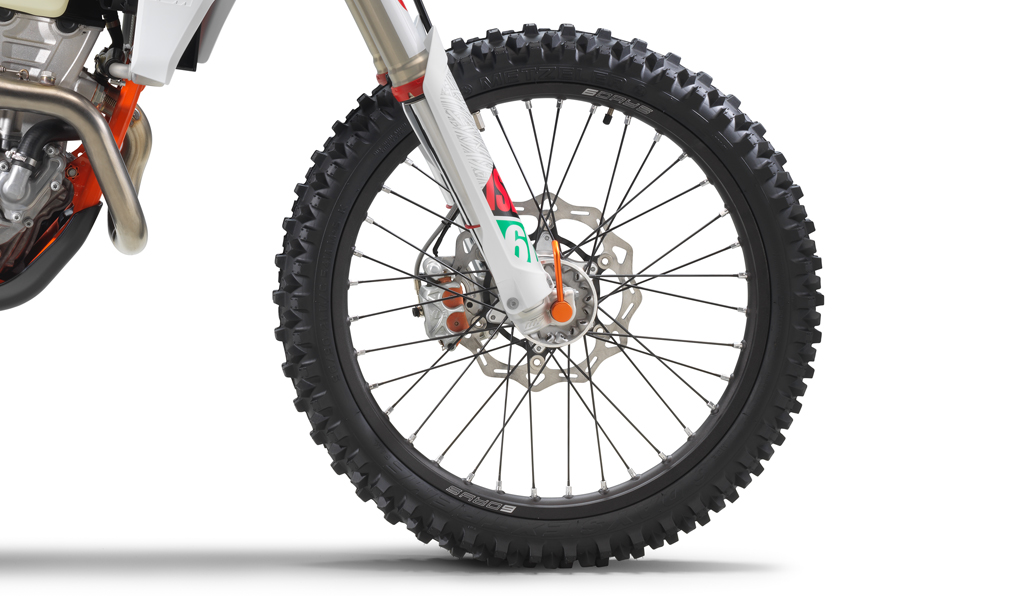

KTM uses lightweight, CNC-machined hubs and high-end GIANT rims on all Enduro models, guaranteeing maximum stability and minimum weight. The aluminum spoke nipples feature an innovative design, which conveniently reduces the frequency with which the spokes need to be tightened.
All EXC models are fitted with the latest 48 mm diameter WP XPLOR upside-down forks, featuring a split fork design developed by WP and KTM. While each side is fitted with springs, they have separate damping functions. Compression damping is on the left and the rebound on the right. Both can easily be adjusted via the dials on top of both fork tubes with 30 clicks each. Although already distinguished for outstanding response and damping characteristics, the fork features a calibrated mid-valve piston for consistent damping. The settings keep the front end higher in the stroke, providing impressive reserves against bottoming out.

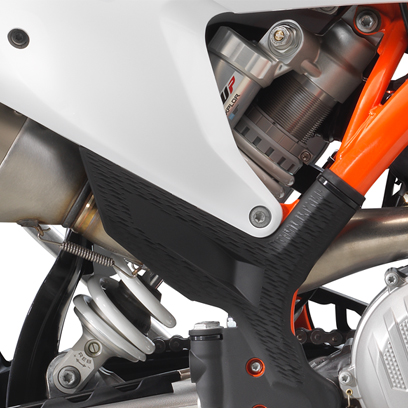

The WP XPLOR shock absorber is the key element on the proven PDS rear suspension design (progressive damping system), where the shock is directly linked to the swingarm without an additional linkage system. This keeps weight lower and reduces the chances of hooking on rocks. Optimal enduro-specific damping progression is achieved by using a second damping piston in combination with a closed cup towards the end of the stroke, and supported by a progressive shock spring. The settings on the XPLOR PDS shock provide impressive damping characteristics and match the frame and front-end set-up perfectly. It is fully adjustable, including high and low-speed compression, so you can set the shock up to suit any track, trail and rider preferences.

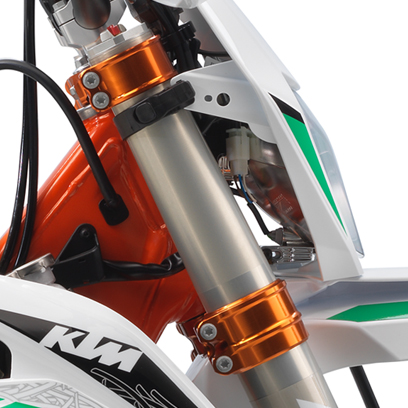

All Six Days models are fitted with high-end CNC machined triple clamps anodized in orange and an offset of 22mm, ensuring a solid grip of the fork and precise handling. The handlebar is adjustable forwards and backwards over 4 positions, so the bike will fit you like your favorite gloves.

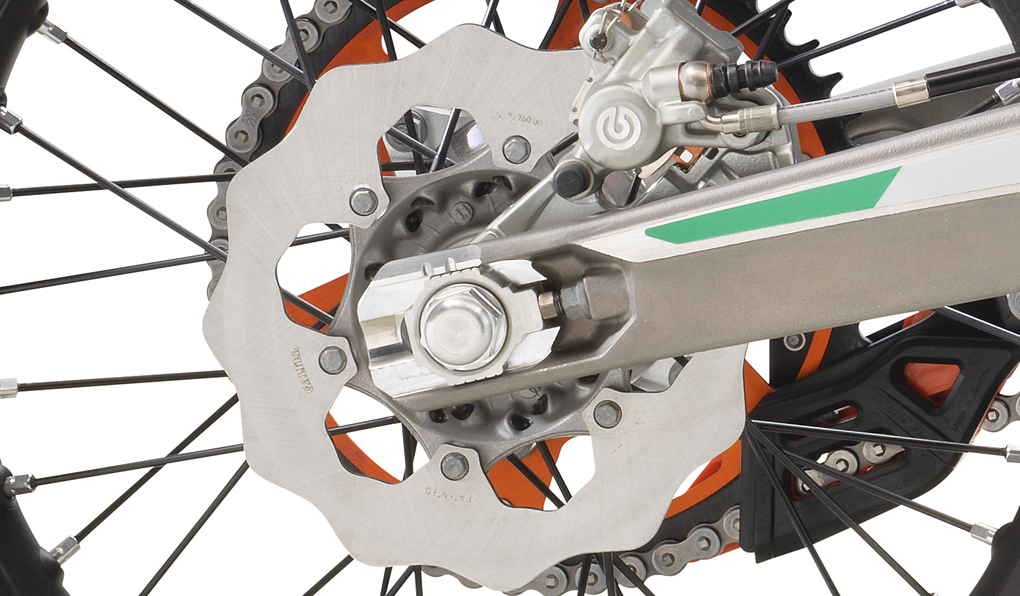

These high-tech Brembo brakes are combined with lightweight Wave brake discs (Solid rear and floating front). You couldn't brake any harder or with better feel on an offroad motorcycle. For additional strength and reliability, the rear brake pedal is secured with a safety wire.

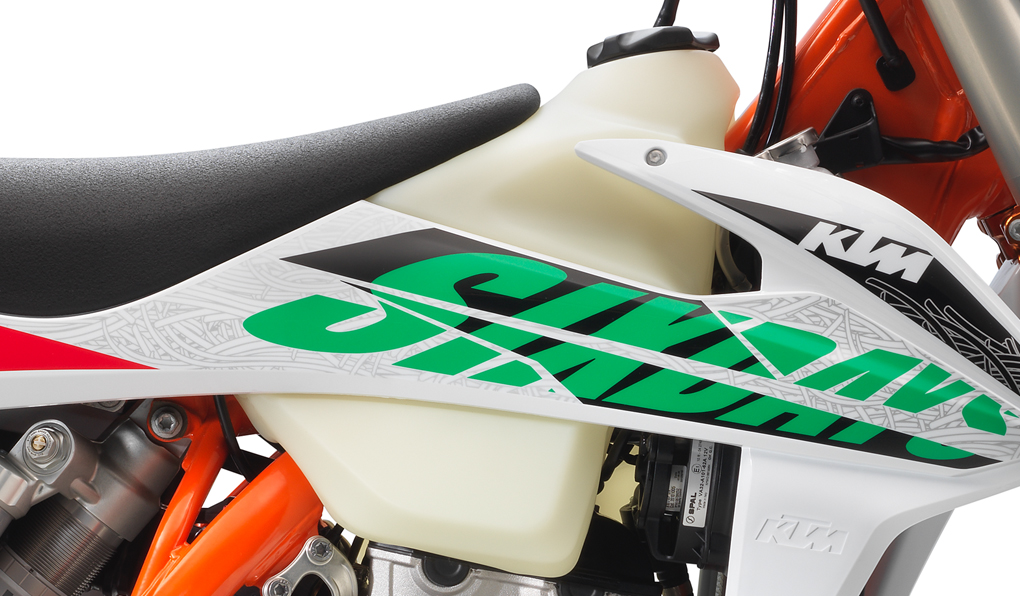

All models in the EXC range are fitted with newly designed lightweight polyethylene tanks improving the ergonomics. The ¼-turn bayonet filler cap makes for quick and easy closure. Manufactured using see-through plastic, you will always be able to see how much fuel remains at a glance. It is fitted with an integrated fuel pump system and a fuel level sensor. Additionally, the fuel line features a 90° connector to the tank for better protection against damage.

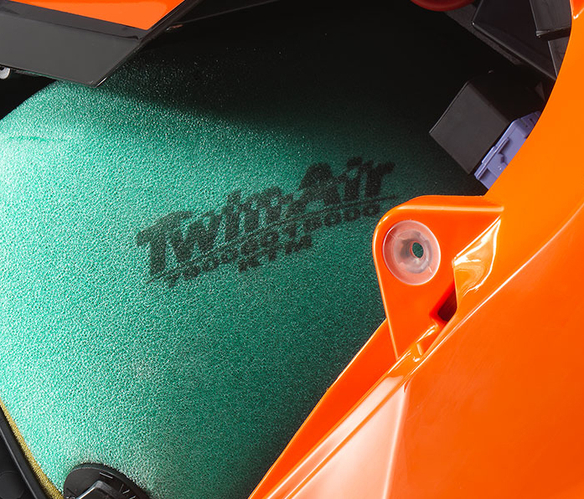

The airbox on the KTM 350 EXC-F SIX DAYS ensures optimal flow dynamics, and together with the intake snorkels, results in optimal power and throttle response. Despite the obvious performance enhancements, the design also offers maximum protection against soiling of the air filter. The large Twin-Air air filter is mounted on a cleverly designed stiff cage that minimizes incorrect installation. As found on previous models, filter maintenance is quick and easy and does not require tools - a standard, original feature from KTM.

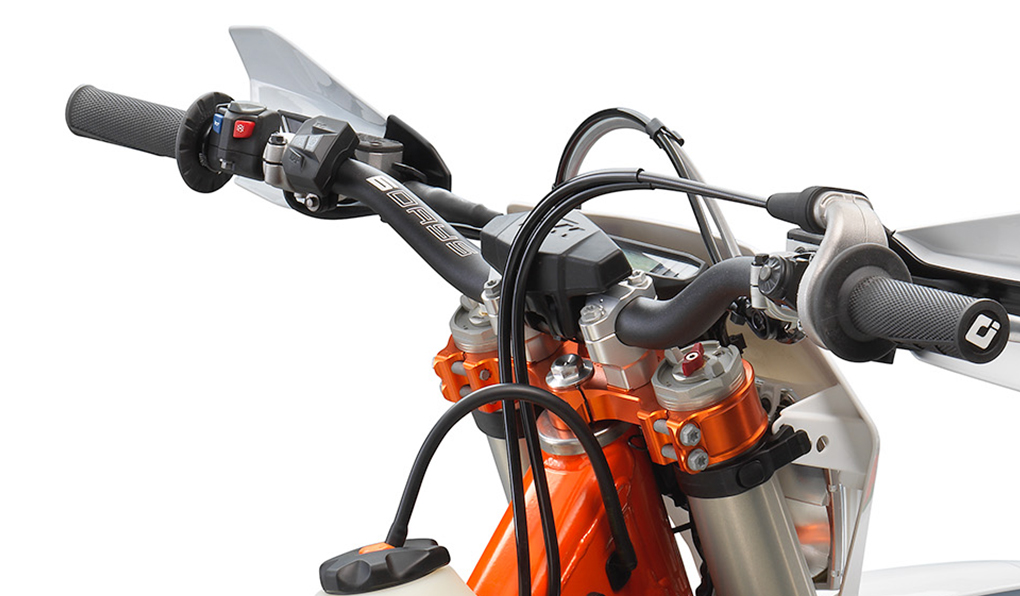

All SIX DAYS models are equipped with the same high-strength aluminum tapered handlebar, that can be mounted in four different positions. The handlebars come standard with an ODI vulcanized grip on the right side and a comfortable ODI lock-on grip, which does not require any wire or glue, on the left. Just in case you needed reminding that you were on a special machine, the handlebars feature the SIXDAYS logo.

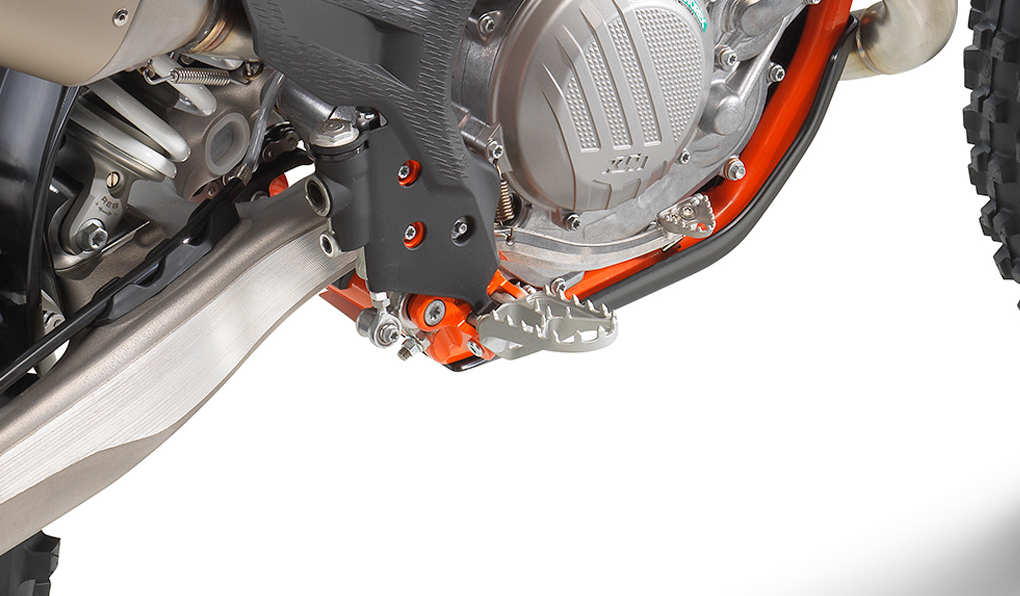

Sophisticated ´No-Dirt´ footpegs prevent clogging up the pegs, even when digging in deep ruts. The pegs on the Enduro models are 6mm higher than the ones used on SX models, which benefits ground clearance. But you can swap them at will.
| ENGINE | |
|---|---|
| TRANSMISSION | 6-speed |
| STARTER | Electric starter |
| STROKE | 57.5 mm |
| BORE | 88 mm |
| CLUTCH | Wet, DDS multi-disc clutch, Brembo hydraulics |
| CO2 EMISSIONS | 89.2 g/km |
| DISPLACEMENT | 349.7 cm³ |
| EMS | Keihin EMS |
| DESIGN | 1-cylinder, 4-stroke engine |
| FUEL CONSUMPTION | 3.83 l/100 km |
| CHASSIS | |
|---|---|
| WEIGHT (WITHOUT FUEL) | 104.3 kg |
| TANK CAPACITY (APPROX.) | 9 l |
| FRONT BRAKE DISC DIAMETER | 260 mm |
| REAR BRAKE DISC DIAMETER | 220 mm |
| FRONT BRAKE | Disc brake |
| REAR BRAKE | Disc brake |
| CHAIN | X-Ring 5/8 x 1/4" |
| FRAME DESIGN | 25CrMo4 steel central-tube frame |
| FRONT SUSPENSION | WP XPLOR-USD, Ø 48 mm |
| GROUND CLEARANCE | 355 mm |
| REAR SUSPENSION | WP Xplor PDS shock absorber |
| SEAT HEIGHT | 960 mm |
| STEERING HEAD ANGLE | 63.5 ° |
| SUSPENSION TRAVEL (FRONT) | 300 mm |
| SUSPENSION TRAVEL (REAR) | 310 mm |
